Single Sided 2mm Pcb Board , Electronics Power Board Copper Core Pcb

Ask Lasest Price
Brand Name :	LEFANG
Model Number :	RM6001L384
Certification :	ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Price :	Negotiable
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	290, 000sqm Per Month
Delivery Time :	2-10 work days

Add to Cart

Product Details
Company Profile

Single Sided 2mm Pcb Board , Electronics Power Board Copper Core Pcb

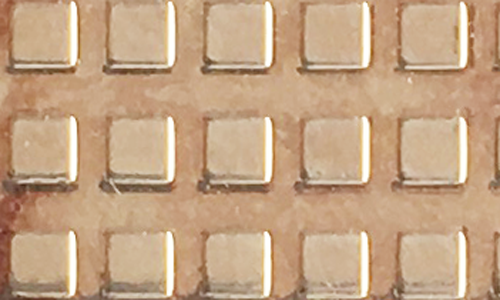

Single sided 2.0 mm Copper Base PCB for Electronics Power Board with Gold Plating

For the copper base PCB board, the specification is 70*60 mm. It is a single sided PCB Board, with 2.0 mm board thickness. Also, the surface treatment of this copper base PCB is gold plating, which is solderd with white sink. This copper base PCB are used in power board with UL and RoHS compliant.

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE
Board material	Fr - 4
Material brand	KB
Material Specification	Tg 170
Board thickness	1.6 mm
Copper thickness	1 Oz
Surface Treatment	ENIG
Solder mask / sSilk print	Green / White
Board size	100 mm * 100 mm
Quantity	10k

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of test function will be offered?

AOI (Automated Optical Inspection)	Impedance control
Automatic short-circuit testing	Metallographic microscope
RoHS detector	Fly probe/ fixture mold
Dielectric tester	Visual inspection

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - PCBA-PCB Board Assembly
PCBA (Printed Circuit Board Assembly) is the board that mounting various components like resistors, ICs (Integrated Circuits), capacitors, transformers and any other components which depending on the application and desired characteristics of the board.
PCB Assembly is a process that requires knowledge including PCB components, assembly, printed circuit board design and PCB fabrication; also you must have deep and thoroughunderstanding of the final product. Circuit board assembly is just one piece of the puzzle to deliver the perfect product the first time.
