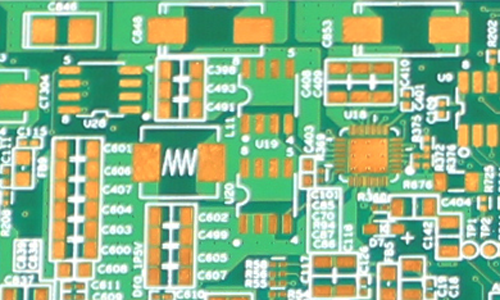

The 12 layer double sided Medical Equipment PCB is applied for
Medical Impedance Module, with 1.6 mm board thickness. The
specification of the high TG PCB board is 111.15 * 177.64 mm, with
Chemical Enig surface treatment and Gold Finger. The minimum
aperture is 0.2 mm with green solder mask.
Why choose LEFANG?
Established in 1999, Lefang owns 3 modern Printed Circuit Board
factories in Guangdong, China.
We provide One-stop solution for PCB & PCBA manufacturing to our
customers home and abroad.
High quality PCB products, competitive price, on time delivery, after-sale service
are always offered.
To make the continued progress, we try our best to in every
section, including selecting quality raw materials
strictly, imported advanced automated equipments, employing 70
experienced engineers, acquiring global
certification of ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, UL,
QC080000, OHSA18000, etc.
Our customers' industry come from Communication, Industrial
Control, Automotive, Medical Equipment,
Security Apparatus, Consumer Electronics and LED Lighting.
We sincerely pursue win-win business with customer all the time!
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
Why you can trust our products?
-- What LEFANG's vision is to Make Our Customer's Products Better,
so we try our best to fulfill the quality control
system andenvironmental management system. Our approved
certification are as below:
| ISO9001:2008 | ISO14001:2004 |
| ISO/TS16949:2009 | OHSAS18000 |
| UL | RoHS |
| QC080000 | CQC |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - Multilayer PCB Board
Multilayer printed circuit boards (Multilayer PCBs) represented the
next major evolution in fabrication technology.
A very sophisticated and complex methodology came from the base
platform of double sided plated.
This methodology would again allow circuit board designers a
dynamic range of interconnects and applications.
Multilayer PCB board were essential in the advancement of modern
computing, and their basic construction and fabrication are similar
to micro chip fabrication on a micro size.
The range of material combinations is extensive from basic epoxy
glass to exotic ceramic fills, and it can be built on ceramic,
copper, and aluminum. Also, blind and buried vias are commonly
produced in multilayer pcb manufacturing, along with pad on via
technology.
