    Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved

    Ask Lasest Price
    Brand Name : LEFANG
    Model Number : OT6002L360
    Certification : ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 290, 000sqm Per Month
    Delivery Time : 2-10 work days
    • Product Details
    • Company Profile

    Durable 2 Layers LF HASL Heavy Copper PCB Manufacturing UL Approved

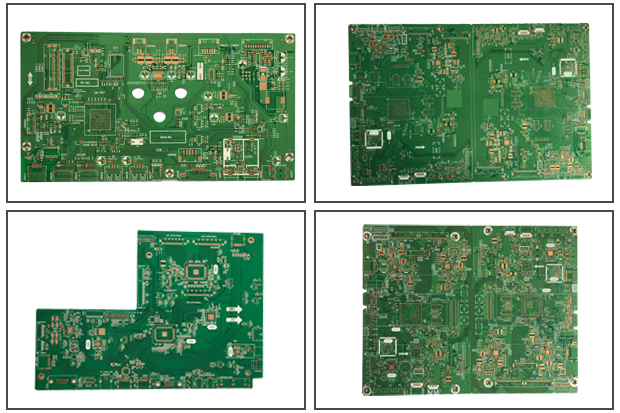

    UL Approved 2 Layers Double Sided LF HASL Thick Copper PCB Manufacturing


    For the heavy copper board manufacturing, LEFANG applies to RoHS and UL compliance. The copper thickness of this thick copper PCB is 2 OZ / 70 µm and the board thickness is 1.6 mm with green solder mask. And the surface treatment is LF HASL, which help to protect the PCB bared copper from oxidation. While the minimum aperture and the line width / Space are 0.2 mm.



    How to get quick quotation?


    Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
    Step 2 Also please provide us the below details for quick quotation:

    Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

    Material brand: SY / KB / Rogers (optional)
    Material Specification:High Tg / copper based / aluminum based or others (optional)
    Board thickness: 0.1 - 6.0 mm
    Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
    Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
    Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
    Board size and quantity

    If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.


    SAMPLE:


    Board Basic Info - SAMPLE

    Board material

    Fr - 4

    Material brand

    KB

    Material Specification

    Tg 170

    Board thickness

    1.6 mm

    Copper thickness

    1 Oz

    Surface Treatment

    ENIG

    Solder mask / sSilk print

    Green / White

    Board size

    100 mm * 100 mm

    Quantity

    10k


    Technical Data
    ItemDetails
    Max layer count20 L
    Max board thickness6.0 mm
    Max aspect ratio10 : 1
    Max copper thickness6 OZ
    Max dimension600 * 700mm
    Min thickness of 4 layers PCB0.4 mm
    Min hole / pad0.15 / 0.35mm
    Hole location accuracy+ / - 0.05mm
    PTH hole tolerance+ / - 0.05mm
    Min line width and line space0.065 / 0.065mm
    Surface treatment

    HASL / HASL lead free, OSP


    Immersion gold/silver/tin, gold plating (hard gold and soft gold),


    silver plating, tin plating, platinum plating, carbon ink,


    ENEPIG

    (electroless nickel - electroless palladium - immersion gold)


    Lead Time

    Layer countSample lead time/workdayBatch lead time/workday
    1-2L26
    4L58
    6L59
    8L610
    10L810
    12L812
    14L1015
    16L1018
    18-40L (Up to difficulty)at least 18at least 24
    P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays


    What kinds of quality Raw Materials will be used?

    Board BrandITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
    PotionRohm & Haas, Atotech, Umicore
    Printing InkTaiyo, Rongda
    Dry FilmAsahi, Dupont, Etertec



    Now send us your inquiry, and you will be replied within 8 hours!


    Little knowledge - Medical Devices
    Electronics contributes significantly to today's health-care industry like in diagnostic, monitoring and treatment devices. Because of the health implications associated with them, medical PCBs are held to higher standards than most other PCB types.
    PCBs within the medical industry are highly specialized to satisfy the restriction of medical devices. In many medical applications, requirements like size and appearance are existed for an implant or emergency room monitor. For this reason, medical PCBs tend to be specialty high-density interconnect PCBs (HDI PCBs) or made with flexible base materials, allowing PCB to flex during use.
