    TG130 Double Sided PCB Matrix Board Tablet / PC Circuit Board 210 * 122 Mm

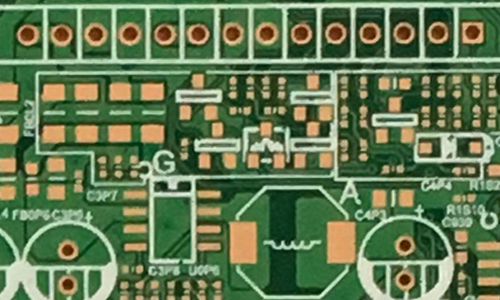

    Double-Sided Tablet PC Printed Circuit Board PCB Motherboard TG130


    For TG130 double sided PCB Board manufacturing, LEFANG has been certificated as ISO 9001 and RoHS compliant. The layer count of this black solder multilayer PCB Board is 2 layers with 1.0 mm board thickness. And the minimum Line width and space of the PCB is 0.13 mm.



    How to get quick quotation?


    Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
    Step 2 Also please provide us the below details for quick quotation:

    Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

    Material brand: SY / KB / Rogers (optional)
    Material Specification:High Tg / copper based / aluminum based or others (optional)
    Board thickness: 0.1 - 6.0 mm
    Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
    Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
    Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
    Board size and quantity

    If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.


    SAMPLE:


    Board Basic Info - SAMPLE

    Board material

    Fr - 4

    Material brand

    KB

    Material Specification

    Tg 170

    Board thickness

    1.6 mm

    Copper thickness

    1 Oz

    Surface Treatment

    ENIG

    Solder mask / sSilk print

    Green / White

    Board size

    100 mm * 100 mm

    Quantity

    10k


    Technical Data
    ItemDetails
    Max layer count20 L
    Max board thickness6.0 mm
    Max aspect ratio10 : 1
    Max copper thickness6 OZ
    Max dimension600 * 700mm
    Min thickness of 4 layers PCB0.4 mm
    Min hole / pad0.15 / 0.35mm
    Hole location accuracy+ / - 0.05mm
    PTH hole tolerance+ / - 0.05mm
    Min line width and line space0.065 / 0.065mm

    Surface treatment


    HASL / HASL lead free, OSP


    Immersion gold/silver/tin, gold plating (hard gold and soft gold),


    silver plating, tin plating, platinum plating, carbon ink,


    ENEPIG

    (electroless nickel - electroless palladium - immersion gold)


    Lead Time

    Layer countSample lead time/workdayBatch lead time/workday
    1-2L26
    4L58
    6L59
    8L610
    10L810
    12L812
    14L1015
    16L1018
    18-40L (Up to difficulty)at least 18at least 24
    P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays


    What kinds of quality Raw Materials will be used?

    Board BrandITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
    PotionRohm & Haas, Atotech, Umicore
    Printing InkTaiyo, Rongda
    Dry FilmAsahi, Dupont, Etertec

    Now send us your inquiry, and you will be replied within 8 hours!


    Little knowledge - PCB Circuit Board

    A printed circuit board (PCB) mechanically supports and electrically connects electronic components using conductive tracks, pads and other features etched from copper sheets laminated onto a non-conductive substrate.

    Components (e.g. capacitors, resistors or active devices) are generally soldered on the PCB. Advanced PCBs may contain components embedded in the substrate.

    There are three kinds of PCB, including single sided pcb (one copper layer), double sided pcb (two copper layers)and multi-layer pcb (outer and inner layers). Conductors on different layers are connected with vias. Multilayer PCBs allow for much higher component density.
