ISO / TS16949 Automotive Printed Circuit Board PCB for Combination
Instrument

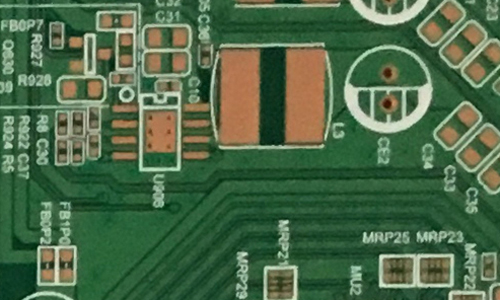

The layer count of this double sided green solder Automotive PCB
Circuit Board is 2 layers, with 1 OZ / 35 µm inner and outer copper
and 1.6 mm board thickness. The automotive PCB is applied to car
combination instrument.
Why choose LEFANG?
Established in 1999, Lefang owns 3 modern Printed Circuit Board
factories in Guangdong, China.
We provide One-stop solution for PCB & PCBA manufacturing to our
customers home and abroad.
High quality PCB products, competitive price, on time delivery, after-sale service
are always offered.
To make the continued progress, we try our best to in every
section, including selecting quality raw materials
strictly, imported advanced automated equipments, employing 70
experienced engineers, acquiring global
certification of ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, UL,
QC080000, OHSA18000, etc.
Our customers' industry come from Communication, Industrial
Control, Automotive, Medical Equipment,
Security Apparatus, Consumer Electronics and LED Lighting.
We sincerely pursue win-win business with customer all the time!
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
How to guarantee our high quality products?
-- We employ 70 professional engineers to ensure our high quality
products.
| Department | Headcount |
| Electronic Eng. | 13 |
| R&D Eng. | 15 |
| PE Eng. | 10 |
| CAM Eng. | 26 |
| MI Eng. | 6 |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - PCBA-PCB Board Assembly
PCBA (Printed Circuit Board Assembly) is the board that mounting
various components like resistors, ICs (Integrated Circuits),
capacitors, transformers and any other components which depending
on the application and desired characteristics of the board.
PCB Assembly is a process that requires knowledge including PCB
components, assembly, printed circuit board design and PCB
fabrication; also you must have deep and thoroughunderstanding of
the final product. Circuit board assembly is just one piece of the
puzzle to deliver the perfect product the first time.
