Gold Immersion Multilayer PCB Circuit Board ISO/TS16949 UL RoHs
For Multilayer PCB Board manufacturing, LEFANG has been
certificated as ISO / TS 16949 and UL approved. The layer count of

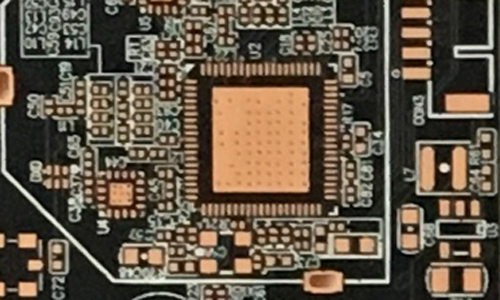

this black solder multilayer PCB Board is 4 layers with 1.0 mm
board thickness. And the minimum Line width and space of the PCB is
8 mil.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed
Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
How many advanced automated equipments do we have?
-- We have spent massively on purchasing below advanced automated
production equipments.
| Equipment Name | Plant in Shenzhen | Plant in Dongguan |
| CCD exposure machine | 8 | 12 |
| AOI test machine | 6 | 8 |
| Mechanical drilling rig | 26 | 53 |
| Automatic edge finishing machine | 2 | 2 |
| Pressing machine | 2 | 2 |
| VCP | 0 | 2 |
| Electroplating line | 1 | 2 |
| CNC routing machine | 12 | 12 |
| Automatic tester | 10 | 16 |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - PCBA-PCB Board Assembly
PCBA (Printed Circuit Board Assembly) is the board that mounting
various components like resistors, ICs (Integrated Circuits),
capacitors, transformers and any other components which depending
on the application and desired characteristics of the board.
PCB Assembly is a process that requires knowledge including PCB
components, assembly, printed circuit board design and PCB
fabrication; also you must have deep and thoroughunderstanding of
the final product. Circuit board assembly is just one piece of the
puzzle to deliver the perfect product the first time.
