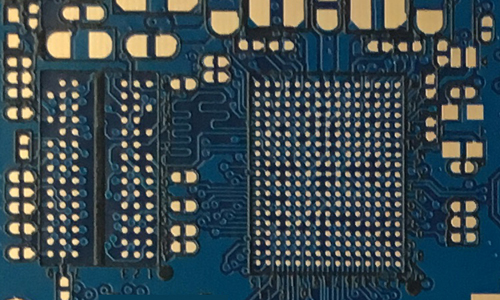

6 Layers Blue Solder Mask OSP Multilayer PCB Circuit Board for
Medical device
For Multilayer PCB Board manufacturing, LEFANG has been meet with
RoHS and UL compliance. The layer count of this multilayer PCB
Circuit Board is 6 layers and the board thickness is 1.2 mm with
blue solder mask. And the surface treatment is OSP, which help to
protect the PCB bared copper from oxidation. While the minimum
aperture is 0.2 mm and the line width and space is 0.1 mm.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed
Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
What kinds of quality Raw Materials will be used?
| Board Brand | ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc |
| Potion | Rohm & Haas, Atotech, Umicore |
| Printing Ink | Taiyo, Rongda |
| Dry Film | Asahi, Dupont, Etertec |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - Multilayer PCB Board
Multilayer printed circuit boards (Multilayer PCBs) represented the
next major evolution in fabrication technology.
A very sophisticated and complex methodology came from the base
platform of double sided plated.
This methodology would again allow circuit board designers a
dynamic range of interconnects and applications.
Multilayer PCB board were essential in the advancement of modern
computing, and their basic construction and fabrication are similar
to micro chip fabrication on a micro size.
The range of material combinations is extensive from basic epoxy
glass to exotic ceramic fills, and it can be built on ceramic,
copper, and aluminum. Also, blind and buried vias are commonly
produced in multilayer pcb manufacturing, along with pad on via
technology.
