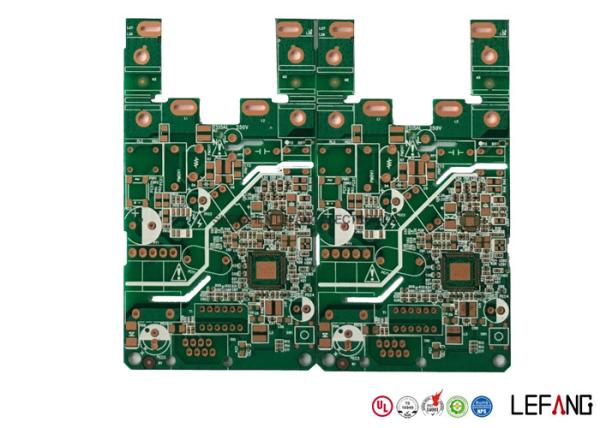

Multilayer PCB Board for Medical Apparatus 1.2mm 4L OSP V0 OEM ODM
For the green solder mask Multilayer PCB Board, the board thickness
is only 1.2 mm and the copper thickness is 35 µm. Also, the surface
treatment of this Multilayer PCB Board is OSP. Its minimum aperture
is 0.3 mm, and the line width and space are 0.1 mm.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed
Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
Why you can trust our products?
-- What LEFANG's vision is to Make Our Customer's Products Better,
so we try our best to fulfill the quality control
system andenvironmental management system. Our approved
certification are as below:
| ISO9001:2008 | ISO14001:2004 |
| ISO/TS16949:2009 | OHSAS18000 |
| UL | RoHS |
| QC080000 | CQC |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - High Tg PCB
The glass transition temperature (Tg) is an important normative
dimension for the base material that determines the temperature at
which the resin matrix converts from a glassy, brittle condition
into a soft, elastic one.
Normally high Tg refers to high heat resistance in PCB raw
material. The standard Tg for copper clad laminate is between 130 –
140℃. High Tg is generally greater than 170℃, and middle Tg is
generally greater than 150℃. Basically the printed circuit board
with Tg≥170℃, we call high Tg PCB.
The higher of TG value, the better of pcb high temperature
resistance.
