Double Sided PCB Mini Card Digital Sport Camera DV Mainboard PC Board

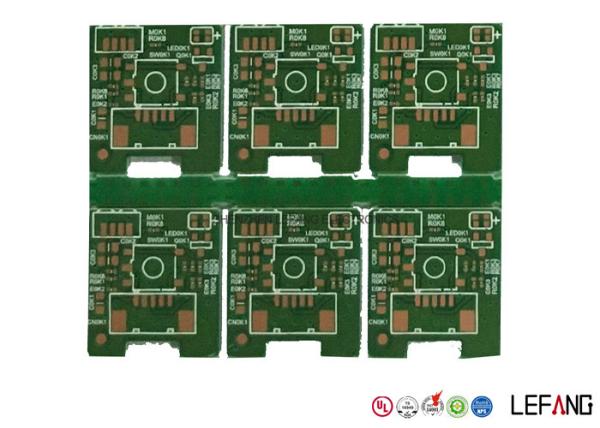

The double sided PCB Board is made with FR4 Board material with 1 Oz / 35 µm copper thickness. Also, the board size of this Multilayer PCB Board is 20 * 22.4 mm, with green solder mask and OSP surface treatment.

Technical Data

Item	Details
Max layer count	20 L
Max board thickness	6.0 mm
Max aspect ratio	10 : 1
Max copper thickness	6 OZ
Max dimension	600 * 700mm
Min thickness of 4 layers PCB	0.4 mm
Min hole / pad	0.15 / 0.35mm
Hole location accuracy	+ / - 0.05mm
PTH hole tolerance	+ / - 0.05mm
Min line width and line space	0.065 / 0.065mm
Surface treatment	HASL / HASL lead free, OSP Immersion gold/silver/tin, gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, ENEPIG (electroless nickel - electroless palladium - immersion gold)

Lead Time

Layer count	Sample lead time/workday	Batch lead time/workday
1-2L	2	6
4L	5	8
6L	5	9
8L	6	10
10L	8	10
12L	8	12
14L	10	15
16L	10	18
18-40L (Up to difficulty)	at least 18	at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of quality Raw Materials will be used?

Board Brand	ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion	Rohm & Haas, Atotech, Umicore
Printing Ink	Taiyo, Rongda
Dry Film	Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Double Sided PCB
Double Sided PCBs also known as Double-Sided Plated Thru or DSPT, which are the gateway to higher technology applications compared to single sided PCB.
Double Sided PCB allow for the routing of traces around each other by jumping between a top and bottom layer by way of vias.
The ability to cross paths from top to bottom greatly increasing the circuit designer's flexibility in circuits designing and lends itself to greatly increased circuit densities.

Established in 1999, we own 3 modern factories in China.

Guangdong province - Shenzhen PCB Factory and Dongguan PCB Factory.

The total production capacity is 290,000 sqm/month.

Our main product is high precision multilayer circuit board.

Also we are experienced in PCBA.

Advanced equipment and professional technical support provide quality product.

Certifications obtained include :

We sincerely pursue win-win business with customer all the time!
