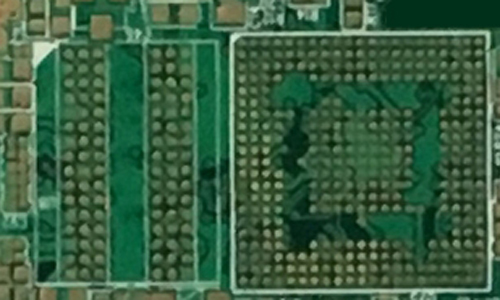

Rogers RoHS ENIG Integrated Multilayer PCB Circuit Board for
Electronics
The layer count of the Multilayer PCB Board is 8 Layers, and it was
made with Rogers Board material with 1 Oz / 35 µm copper thickness.
Also, the board size of this Multilayer PCB Board is 55 * 37 mm,
with green solder mask and Immersion Gold / ENIG surface treatment.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed
Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
Why you can trust our products?
-- What LEFANG's vision is to Make Our Customer's Products Better,
so we try our best to fulfill the quality control
system andenvironmental management system. Our approved
certification are as below:
| ISO9001:2008 | ISO14001:2004 |
| ISO/TS16949:2009 | OHSAS18000 |
| UL | RoHS |
| QC080000 | CQC |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - PCB Circuit Board
A printed circuit board (PCB) mechanically supports and
electrically connects electronic components using conductive
tracks, pads and other features etched from copper sheets laminated
onto a non-conductive substrate.
Components (e.g. capacitors, resistors or active devices) are
generally soldered on the PCB. Advanced PCBs may contain components
embedded in the substrate.
There are three kinds of PCB, including single sided pcb (one
copper layer), double sided pcb (two copper layers)and multi-layer
pcb (outer and inner layers). Conductors on different layers are
connected with vias. Multilayer PCBs allow for much higher
component density.
