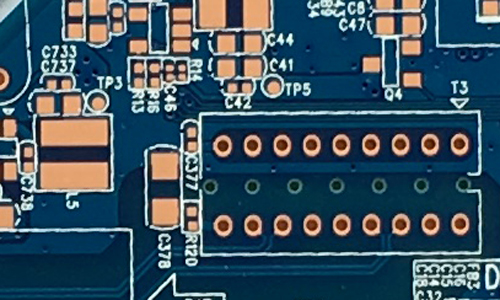

Multilayer High TG170 PCB Blue Solder Printed Circuit Board for GPS
Displayer
The raw material of the multilayer High TG PCB is FR4 substrate.
And the specification of the 4 layers PCB is 52*68 mm and its
surface treatment is OSP. For high TG PCB, it could suffer a high
operating tempreture. So it can always been found in the industrial
machines.
What We Can Do for You?
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed
Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
Lead Time
| Layer count | Sample lead time/workday | Batch lead time/workday |
| 1-2L | 2 | 6 |
| 4L | 5 | 8 |
| 6L | 5 | 9 |
| 8L | 6 | 10 |
| 10L | 8 | 10 |
| 12L | 8 | 12 |
| 14L | 10 | 15 |
| 16L | 10 | 18 |
| 18-40L (Up to difficulty) | at least 18 | at least 24 |
| P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
How many advanced automated equipments do we have?
-- We have spent massively on purchasing below advanced automated
production equipments.
| Equipment Name | Plant in Shenzhen | Plant in Dongguan |
| CCD exposure machine | 8 | 12 |
| AOI test machine | 6 | 8 |
| Mechanical drilling rig | 26 | 53 |
| Automatic edge finishing machine | 2 | 2 |
| Pressing machine | 2 | 2 |
| VCP | 0 | 2 |
| Electroplating line | 1 | 2 |
| CNC routing machine | 12 | 12 |
| Automatic tester | 10 | 16 |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - PCBs Automotive Applications
More and more electronic components are used in automotive,
including high frequency signals, microwave, millimeter-wave and
radar. And all electronics components run regularly without PCBs.
We can find it all round the automobile. The radar and camera with
high quality PCBs can measure the distances and alert the driver to
avoid the collision. Vehicle control and management system with
PCBs could monitor and manage resources. Furthermore, the PCB
boards are installed in the navigation devices and multimedia
devices, which could help to locate the unfamiliar territory and
make the driver to enjoy their long journey.
