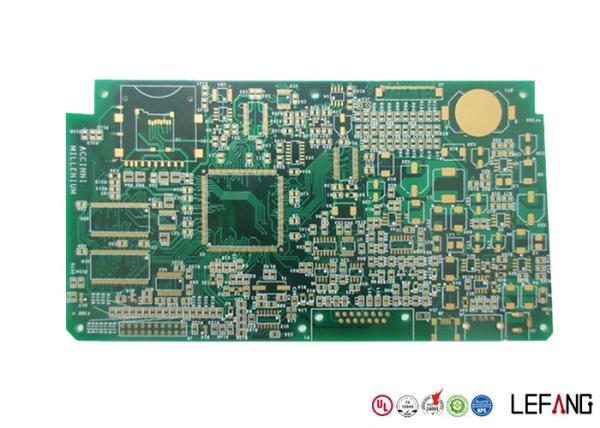

Hot Sale OLED PCB Board for Company Daily Conference
This Hot Sale OLED PCB Board for Company Daily Conference is 8
layers with green solder mask. Its copper thickness is 1 OZ and the
minaperture of this copper base PCB Board is 0.15 mm, with ENIG
surface treatment
Why choose LEFANG?
Established in 1999, Lefang owns 3 modern Printed Circuit Board
factories in Guangdong, China.
We provide One-stop solution for PCB & PCBA manufacturing to our
customers home and abroad.
High quality PCB products, competitive price, on time delivery, after-sale service
are always offered.
To make the continued progress, we try our best to in every
section, including selecting quality raw materials
strictly, imported advanced automated equipments, employing 70
experienced engineers, acquiring global
certification of ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, UL,
QC080000, OHSA18000, etc.
Our customers' industry come from Communication, Industrial
Control, Automotive, Medical Equipment,
Security Apparatus, Consumer Electronics and LED Lighting.
We sincerely pursue win-win business with customer all the time!
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc |
| Step 2 Also please provide us the below details for quick quotation: |
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
| Material brand: SY / KB / Rogers (optional) |
| Material Specification:High Tg / copper based / aluminum based or
others (optional) |
| Board thickness: 0.1 - 6.0 mm |
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) |
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion
Tin / Immersion Sin |
| Color of solder mask and silk print: Green / red / blue / black /
white / yellow ,etc |
| Board size and quantity |
If you don't have Gerber file, please provide us the imfomation as
step 2 or post your PCB Board to us for clone.
|
SAMPLE:
|
Board Basic Info - SAMPLE | Board material | Fr - 4 | Material brand | KB | Material Specification | Tg 170 | Board thickness | 1.6 mm | Copper thickness | 1 Oz | Surface Treatment | ENIG | Solder mask / sSilk print | Green / White | Board size | 100 mm * 100 mm | Quantity | 10k |
|
What kinds of test function will be offered?
| AOI (Automated Optical Inspection) | Impedance control |
| Automatic short-circuit testing | Metallographic microscope |
| RoHS detector | Fly probe/ fixture mold |
| Dielectric tester | Visual inspection
|
Now send us your inquiry, and you will be replied within 8 hours!
PCBs Lighting Applications
LED lighting, which is valued for their low power consumption, high
efficiency and impressive light output, is environmentally
significant to our daily life. When integrated with a Printed
Circuit Boards(PCBs), the usages of LED lighting are expanded
rapidly. In telecommunication industry, PCBs are always used to
control LED displayers and indicators. While in automotive
industry, LED PCB boards could usually be seen on dashboard
indicators, headlights, brake lights and advanced panel displays.
And also you can find LED PCBs in desktop and laptop displays and
indicators every corner in Computer technology industry. However,
the most widely use of the LED PCBs is in illumination industry.
